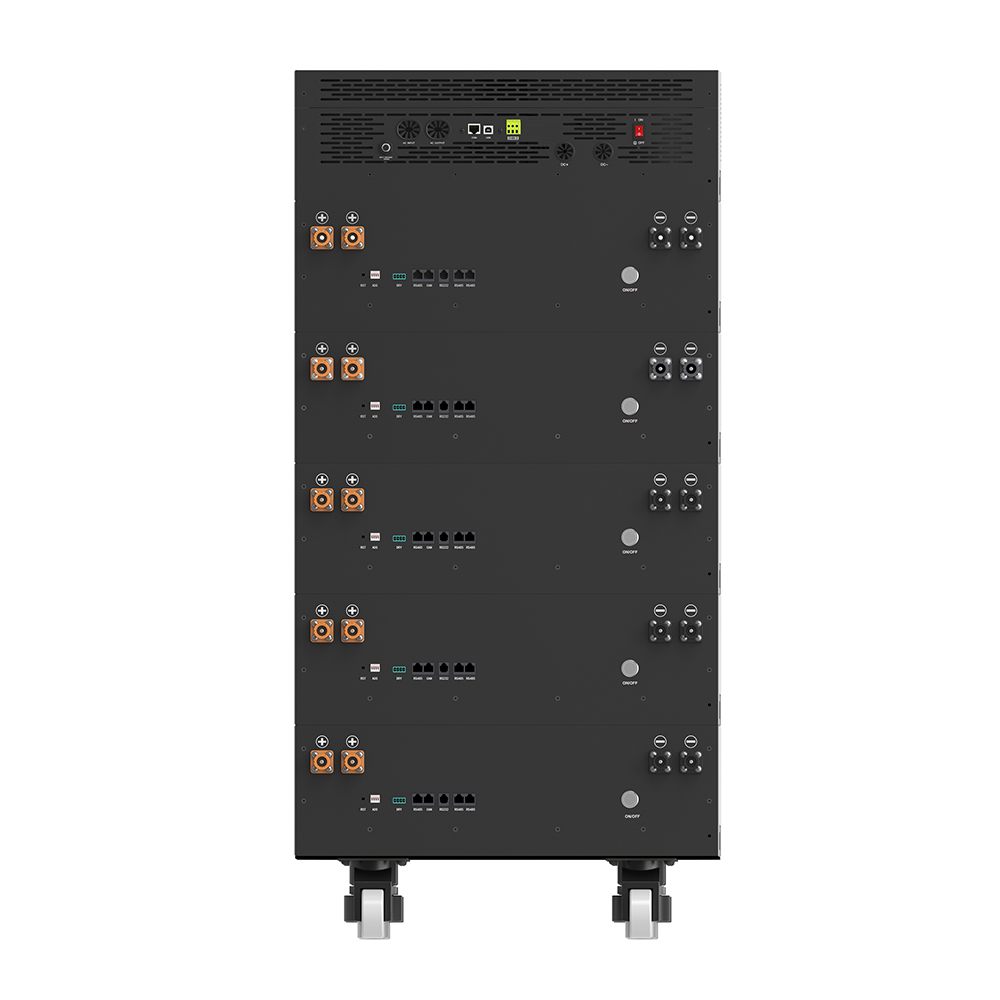

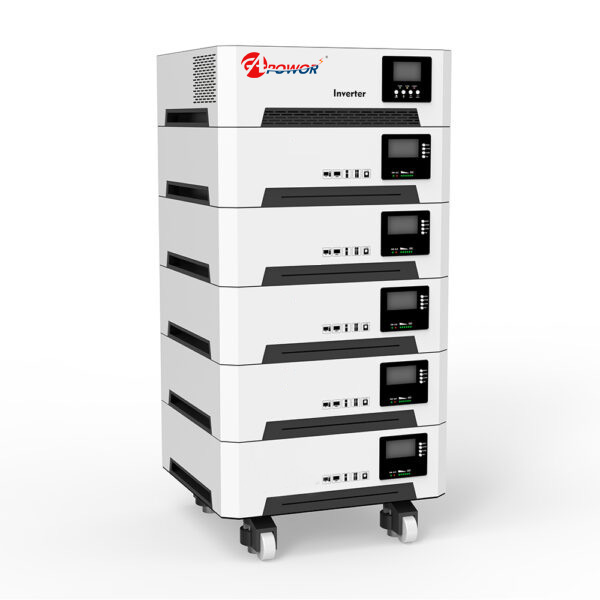

Stacked movable energy storage systems.
Rechargeable lithium batteries use safe lithium cell LiFePO4.
The intelligent BMS system adopts the latest battery communication system.
Flexible investment with 5.12kWh modular design, scalable from 10.24kWh to 25.6kWh.
The battery capacity can be increased freely and flexibly according to the situation of home use.
Reduce electricity bills and increase your energy needs for electrical self-sufficiency.
| MODEL | HB18-4048 PLUS | HB18-5048 PLUS |
|---|---|---|
| Inverter | ||
| Rated power | 4000W | 5000W |
| Output voltage waveform | Pure sine wave | |
| Output voltage regulation | 230Vac±5% | |
| Output frequency | 50Hz or 60Hz (±0.2Hz) | |
| Peak efficiency | 90% | |
| Nominal DC input voltage | 48Vdc | 48Vdc |
| Standby Consumption | < 25W | |
| AC Input | ||
| AC input voltage | 230Vac ±5% | |
| Acceptable input voltage range | 170~280VAC | |
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | |
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | |
| AC Charge | ||
| Charging current @ Nominal input voltage | 60A-60A | 20A-30A |
| Charging Algorithm | 4-step (Li) | |
| Output | ||
| AC output | 230Vac (Socket *4pcs) | |
| Lithium Battery | ||
| Energy | 10240Wh / 15360Wh / 20480Wh / 25600Wh | |
| Nominal voltage | 51.2V | |
| Battery capacity | 200AH/300AH/400AH/500AH | |
| Standard charging and discharge current | 100A | |
| Maximum continuous charging & discharge current | 100A | |
| Operation ambient temperature | ||
| Charge | 0~45℃ | |
| Discharge | -20~55℃ | |
