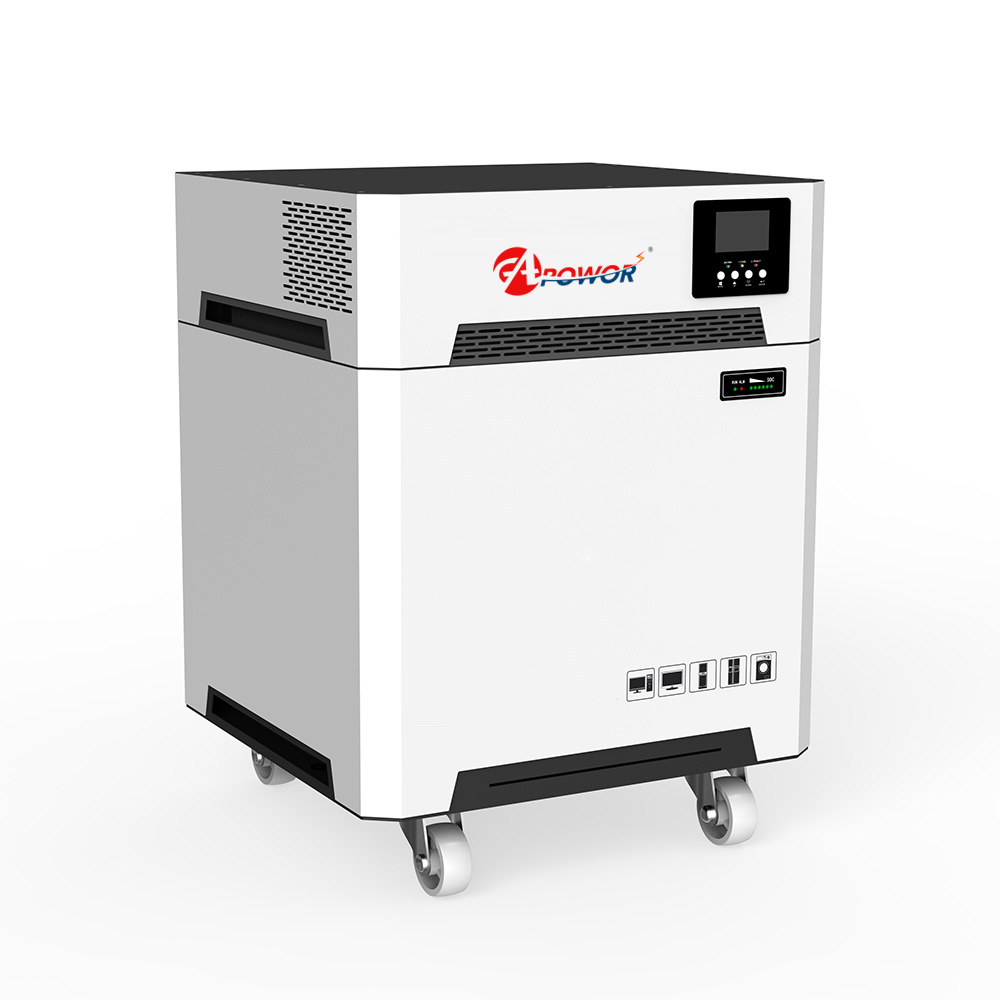

| MODEL | HBP18-3048 LV |
|---|---|
| Inverter | |
| Rated power | 3000W |
| Output voltage waveform | Pure sine wave |
| Output voltage regulation | (100Vac-120Vac)±5% |
| Output frequency | 50Hz or 60Hz (±0.2Hz) |
| Peak efficiency | 93% |
| Nominal DC input voltage | 36Vdc |
| Standby Consumption | <25W |
| PV Input | |
| Max solar power input | 3000W |
| PV max charging current | 80A |
| Combined charging current | 140A |
| Max efficiency | 98.0% max |
| PV array open circuit voltage | 145Vdc |
| PV Array MPPT Voltage Range | 30~120Vdc |
| AC Input | |
| AC input voltage | 120Vac ±5% |
| Acceptable input voltage range | 90~145VAC(UPS), 60~145VAC(APL), 107~132VAC(VDE4105) |
| Nominal input frequency | 50Hz / 60Hz (Auto detection) |
| Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) |
| AC Charge | |
| Charging current @ Nominal input voltage | 60A |
| Charging Algorithm | 4-step (Li) |
| Output | |
| AC output | Terminal |
| Lithium Battery | |
| Energy | 9600Wh |
| Nominal voltage | 38.4V |
| Battery capacity | 250Ah |
| Standard charging and discharge current | 100A |
| Maximum continuous charging & discharge current | 100A |
| Operation ambient temperature | -10~50℃ |
| Storage ambient temperature | -20~55℃ |
