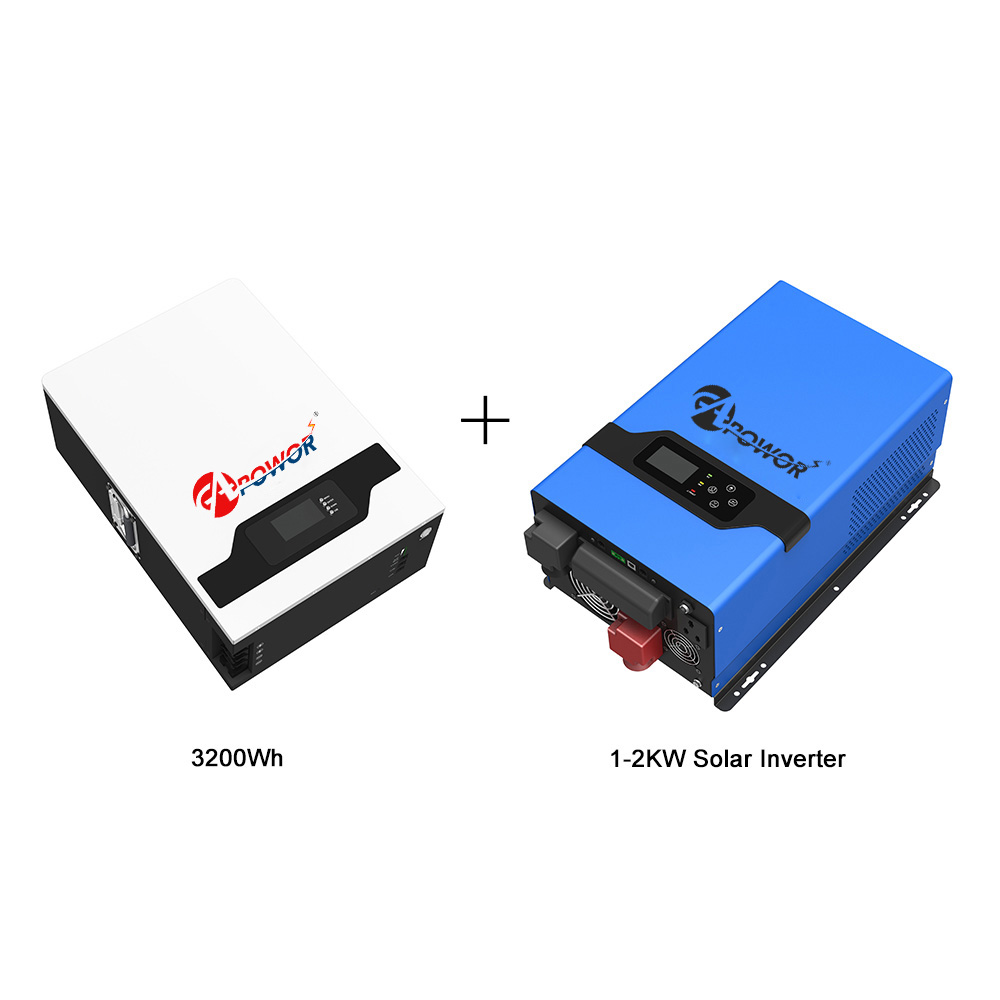

| MODEL | HBP30-1012 LV | HBP30-1512 LV | HBP30-2012 LV |
|---|---|---|---|
| Inverter | |||
| Rated power | 1000W | 1500W | 2000W |
| Output voltage waveform | Pure sine wave | ||
| Output voltage regulation | 10V / 115V / 120VAC(±10% RMS) | ||
| Output frequency | 50Hz or 60Hz (±0.2Hz) | ||
| Peak efficiency | 88% | ||
| Nominal DC input voltage | 12Vdc | ||
| Standby Consumption | < 2W | ||
| PV Input | |||
| Max solar power input | 1250W | ||
| PV max charging current | 80A | ||
| Combined charging current | 80A | ||
| Max efficiency | 98% max | ||
| PV array open circuit voltage | 100V | ||
| PV Array MPPT Voltage Range | 16~100VDC | ||
| AC Input | |||
| AC input voltage | 110/120VAC | ||
| Acceptable input voltage range | 95~135VAC | ||
| Nominal input frequency | 50Hz / 60Hz (Auto detection) | ||
| Transfer time | 10ms(max) | ||
| AC Charge | |||
| Charging current @ Nominal input voltage | 30A | 45A | 60A |
| Charging Algorithm | 4-step (Li) | ||
| Output | |||
| AC output | Terminal | ||
| Lithium Battery | |||
| Energy | 3200wh | ||
| Nominal voltage | 12.8V | ||
| Battery capacity | 250Ah | ||
| Standard charging and discharge current | 20A | ||
| Maximum continuous charging & discharge current | 100A | ||
| Operation ambient temperature | -10~50℃ | ||
| Storage ambient temperature | -20~55℃ | ||
